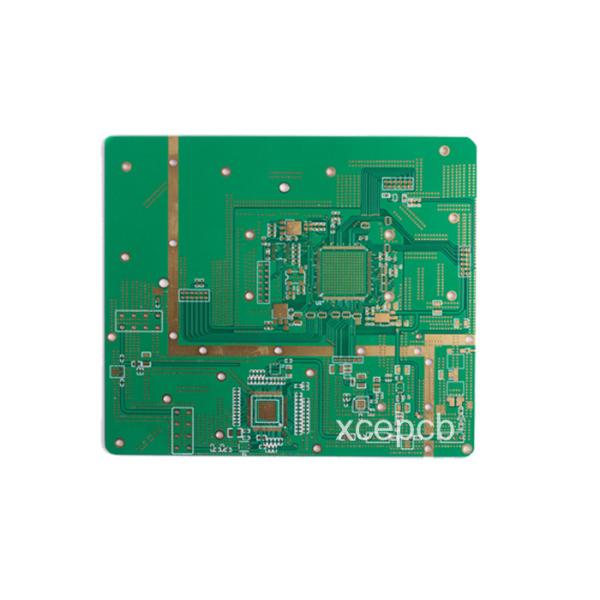

High Precision FR4 Printed Circuit Board PCB Single Sided / Double Side PCB Fabrication

Brand Name : XCE

Model Number : XCEF

Certification : CE,ROHS, FCC,ISO9008

Place of Origin : China

MOQ : 1pcs

Price : negotiation

Payment Terms : T/T,Western union, L/C, MoneyGram

Supply Ability : 1, 000, 000 PCS / week

Delivery Time : 5-10 days

Packaging Details : inner: vacuum-packed bubble bag outer: carton box

Line space : 2mil

Copper THK : 5OZ

Line Width : 3mil

Immersion gold : 10 micro inch

Material : KB FR4

Hole : resin plug hole

Contact Now

High Precision FR4 PCB High Difficult Customized Service Printed Circuit Board

Specification:

high difficult pcb such as min line space and width 2mil

Machinable maximum thickness to diameter ratio: 10:1
Hole position deviation: ±0.05mm/ 2mil
Profile tolerance: ±0.15mm/ 6mil
Min S/M bridge: 0.1mm/ 4mil
Twist and bent: ≤1.5%
Peel strength: 1.5N/mm
Solder mask abrasion: ＞4H

Parameter:

Layer	1-26(layer)
Max Board size	2layer :600mm1200mm(24" 47)"
Max Board size	Multilayer :600mm600mm(24" 24)"
Copper thick	0.5OZ-8OZ/18um-280um
Min Board Thickness	single:0.1mm—6.0mm/4mil-240mil
	2 layer:0.2mm--6.0mm/8mil-240mil
	4 layer: 0.4mm-6.0mm /16mil-240mil
	6 layer: 0.8mm-6.0mm/32mil-240mil
	8 layer: 1.0mm-6.0mm/40mil-240mil
	10 layer: 1.5mm-6.0mm/60mil-240mil
Min line width( sample)	0.075mm/3mil
Min space( sample)	0.075mm/ 3mil
Min hole size	0.2mm/8mil
Machinable maximum thickness to diameter ratio	10:1
Impedance control	+/-10%

Quality control

High Precision FR4 Printed Circuit Board PCB Single Sided / Double Side PCB Fabrication

Application:

Products are applied to a wide range of High-tech industries such as: Medical instrumentation,wireless and wired telecommunication,computer application, lighting, game machine, industrial control, Power amplifier automobile and high-end consumer electronics, ect.
