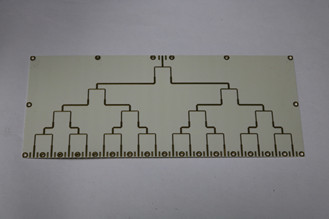

Rogers 3003 RF / Microwave PTFE-Based Rogers PCB 2 Layer Board

Brand Name : XCE
Model Number : XCEM
Certification : CE,ROHS, FCC,ISO9008,SGS,UL
Place of Origin : China
MOQ : 1pcs
Price : negotiation
Payment Terms : T/T,Western union
Supply Ability : 1, 000, 000 PCS / week
Delivery Time : 5-10 days
Packaging Details : inner: vacuum-packed bubble bag outer: carton box
Material : Rogers
Layer : 2
Min line space : 5mil
Min line width : 5mil
Copper thickness : 1OZ
Board size : 205*88MM
Panel : 1
Contact Now

Rogers3003 RF/Microwave PTFE-Based Materials 2 Layer Board


Basic Info

  • Type: Rigid Circuit Board

  • Flame Retardant Properties: V0

  • Insulation Materials: Rogers3003

  • Min. Hole Size: 0.2mm

  • Certificates: UL, RoHS, SGS, ISO9001 ISO14000

  • Soldermask: Green,Blue,White,Black,Yellow,Red

  • Transport Package: by Vacuum Packing in Cartons

  • Dielectric: Rogers

  • Mechanical Rigid: Rigid

  • Min. Line Width&Spacing: 0.1mm/0.1mm

  • Shipping: DHL, UPS, TNT, FedEx, etc

  • Silkscreen: White,Black

  • Origin: Shengzhen


Key specifications/special features:
Rogers PCB
Rogers 4350B, Roger3003, Rogers4003,Roger 5880 and more material on stock
PCB thickness: 0.2-2mm+/-10%
Final copper: 0.5-10oz
Min hole: 0.2mm
Min line width/space: 4/4mil
Min hole copper: 20μm/25μm
Solder mask: green/blue/red/black/gray/white
Legend: white/black/yellow
Surface: OSP/HAL lead-free/immersion gold/immersion tin/
immersion silver/flash gold/hard gold
Outline: rout and score/V-cut
E-test: 100%
Certificates: UL, SGS, RoHS Directive-compliant, ISO
Files: Gerber Protel DXP Auto CAD PADs eagle
Testing: flying probe test, E-test, X-ray Inspection, AOI



Parameter:
Rogers 4003 C Pcb With 3.38 ER . There are 0.127 mm ,0.254 mm ,0.762 mm 0.508 mm 1.6 mm board thinckness with 1 oz , 2 oz ,3 oz .
Rogers 4350 B pcb With 3.5 ER . There are 0.127 mm ,0.254 mm ,0.762 mm 0.508 mm 1.6 mm board thinckness with 1 oz , 2 oz ,3 oz .
Rogers 5880 Pcb With 2.2 ER . There are 0.127 mm ,0.254 mm ,0.762 mm 0.508 mm 1.6 mm board thinckness with 1 oz,2 oz, 3 oz
Rogers 3003 Pcb With 3 ER . There are 0.127mm,0.508mm 0.762mm 1.6 mm 3 mm Board Thinckness with 1 oz ,2 oz , 3 oz .
Rogers 3010 Pcb With 10.2 ER . There are 0.635 mm Thinckness Board with 1 oz , 2 oz ,3 oz .



Sufficient stock:
We have sufficient rogers material raw as follow:RO4003C,RO4350B,RO4360,RO4533,RO4535,RO4730,
RO4232,RO4233,RO3003,RO3006,RO3010,RO3035,RO3203,RO3206,
RO3210,RO3730,RO5780,RO5880,RO6002,RO3202,RO6006,
Frequently-used is 4003C,4350B,5880
So we can do pcb circuit board with your detail requirements in the case of you send us gerber files or any other files


High frequency:

ModelParameterthickness(mm)Permittivity(ER)
F4BF4B0.382.2
F4B0.552.23
F4B0.225,0.3,0.5,08,1,1.2,1.5,2,2.5,3.02.65
F4Bk0.8,1.52.65
F4B0.83.5
FE=F4BM12.2
RogersRO58800.254 0.508 0.7622.20 ± 0.02
RO43500.254 0.508,0.8,1.5243.5
RO40030.5083.38
TACONICTLF-350.83.5
TLA-60.254,0.8,1,1.5,2.65
TLX-80.254,0.8,1,1.62.55
RF-60A0.646.15
TLY-50.254,0.508,0.82.2
TLC-320.8,1.5,33.2
TLA-350.83.2
ARLONAD255C06099C1.52.55
MCG0300CG0.83.7
AD0300C0.83
AD255C03099C0.82.55
AD255C04099C12.55
DLC22012.2

Features:
Rogers pcb multilayer pcb with high frequency can improvide the products quality ,
with high techolonogy treatment improve the life cycle of the products .
The high frequency rogers pcb with 4 mil 1 oz ,
also with DHI half hole blind buried techonology .
Immersion gold surface finish make the pcb 's conductive performance enhancements.
Multilayer pcb design ,the precision of the pcb improves much more better .
Low dielectric : 3 dielectric conductivity much more precision .
Rogers material used in RF Microwave fields in radar system .


Q&A:
What products XCE can supply?
XCE supplies PCB,PCB Assembly Service
What kind of material XCE can produce with?
XCE offers Rogers,Taconic,Arlon,F4B,etc.
What kind of surface finish XCE can make?
XCE can make HASL lead/lead free,gold finishing.

Our Mission:
Credit on Customers/Focus on Quality/Rely on Management/Keen on Improvement

Requested information for PCB Assembly:
1. Gerber file & BOM list if possible
2. PCBA Samples
3. Testing procedure & Testing fixtures
4. Order Quantity
5. ODM Capability:


Till now we have successfully developed Analogue high performance FM transmitter, Wide frequency
stereo transmission circuit, SSB communication system, High performance wave receiving antenna,
Digital Frequency Hopping Radio Set, Digital Addressing communication system, etc. Moreover.
