2oz Black Sloder Immersion Gold High TG PCB Board Electronic Prototype

Shenzhen Xinchenger Electronic Co.,Ltd

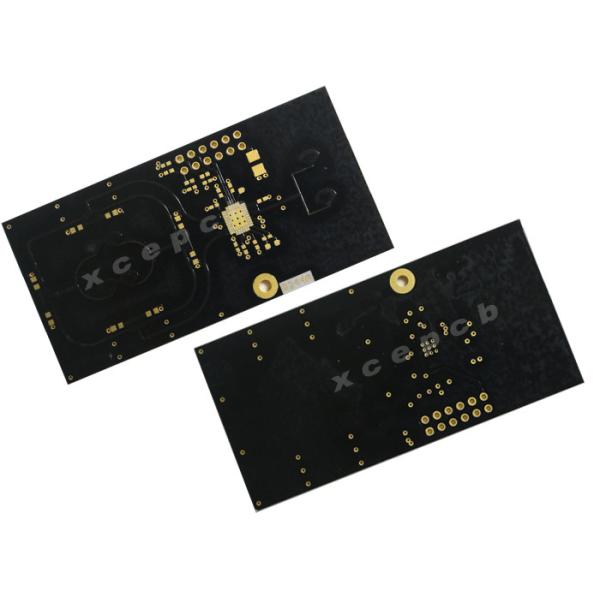

2oz Black Sloder Immersion Gold High TG PCB Board Electronic Prototype

  • 1
  • 2

Brand Name : XCE

Model Number : XCEM

Certification : CE,ROHS, FCC,ISO9008,SGS,UL

Place of Origin : China

MOQ : 1pcs

Price : negotiation

Payment Terms : T/T,Western union

Supply Ability : 1, 000, 000 PCS / week

Delivery Time : 5-10 days

Packaging Details : inner: vacuum-packed bubble bag outer: carton box

Material : FR4

Layer : 2

Color : Green

Min line space : 5mil

Min line width : 5mil

Copper thickness : 2OZ

Board size : 110*60mm

Panel : 1

Surface : HASL-LF

Contact Now

2oz Black Sloder Immersion Gold PCB Board Electronic Prototype High TG Material

Quick detail:

Origin:China Special: FR4 Material
Layer:2 Thickness:1.6mm
Surface: HASL-LF Hole:0.8

Specification:

FR-4 material is a fire code rating, represents a material specification is meant a resin material through the combustion state must be self-extinguishing, it is not a material name, but a material grade. So now FR-4 grade material is typically used in circuit boards, there are many species, but most are based on the so-called four-function (Tera-Function) plus epoxy filler (Filler) and glass fiber made composite materials.

Typical Applications

  • Cellular Base Station Antennas and Power Amplifiers
  • Microwave point to point (P2P) links
  • Automotive Radar and Sensors
  • low dielectric loss
  • Ballast, lights, navigation
  • The stability of the dielectric constant
  • An extremely low water imbibition
  • IT industry,Keyboard products

General FR-4 differs from high Tg FR-4: in the hot state, especially in the heat after moisture absorption, the mechanical strength of the material, dimensional stability, adhesion, water absorption, thermal decomposition, differences in thermal expansion and other various conditions, high Tg products significantly better than conventional PCB substrate material.

Tg of the substrate is increased, PCB thermal resistance, moisture resistance, chemical resistance, stability and other characteristics will improve and improve. TG higher the value, the better the sheet temperature resistance, especially in the lead-free process, the high Tg applications more.

Parameter:

o Item Data
1 Layer: 1 to 24 layers
2 Material type: FR-4, CEM-1, CEM-3, High TG, FR4 Halogen Free, Rogers
3 Board thickness: 0.20mm to 3.4mm
4 Copper thickness: 0.5 OZ to 4 OZ
5 Copper thickness in hole: >25.0 um (>1mil)
6 Max. Board Size: (580mm×1200mm)
7 Min. Drilled Hole Size: 4mil(0.1mm)
8 Min. Line Width: 3mil (0.075mm)
9 Min. Line Spacing: 3mil (0.075mm)
10 Surface finishing: HASL / HASL lead free, HAL, Chemical tin, Chemical Gold, Immersion Silver/Gold, OSP, Gold plating
11 Solder Mask Color: Green/Yellow/Black/White/Red/Blue
12 Shape tolerance: ±0.13
13 Hole tolerance: PTH: ±0.076 NPTH: ±0.05
14 Package: Inner packing: Vacuum packing / Plastic bag,Outer packing: Standard carton packing
15 Certificate: UL,SGS,ISO 9001:2008
16 Special requirements: Buried and blind vias+controlled impedance +BGA
17 Profiling: Punching, Routing, V-CUT, Beveling

Features

• High Thermal Performance
 Tg: 180°C (DSC)
 Td: 340°C (TGA @ 5% wt loss)
 Low CTE for reliability
• T260: 60 minutes
• T288: 30 minutes
• RoHS Compliant
• UV Blocking and AOI Fluorescence
 High throughput and accuracy during PCB
fabrication and assembly
• Superior Processing
 Closest to conventional FR-4 processing
• Core Material Standard Availability
 Thickness: 0.002″ (0.05 mm) to 0.125″
(3.2 mm)
 Available in full size sheet or panel form
• Prepreg Standard Availability
 Roll or panel form
 Tooling of prepreg panels available
• Copper Foil Type Availability
 Standard HTE Grade 3
 RTF (Reverse Treat Foil)
• Copper Weights
 ½, 1 and 2 oz (18, 35 and 70 μm) available
 Heavier copper available upon request
 Thinner copper foil available upon request
• Glass Fabric Availability
 Standard E-glass
 Square weave glass fabric available
 Spread glass fabric available
• Industry Approvals
 IPC-4101C /21 /24 /26 /97 /98 /99 /101 /126
 UL - File Number E41625 as PCL-FR-370HR
 Qualified to UL's MCIL Program

Rogers material in stock:

Brand Model Thickness(mm) DK(ER)
F4B F4B 0.38 2.2
F4B 0.55 2.23
F4B 0.225,0.3,0.5,08,1,1.2,1.5,2,2.5,3.0 2.65
F4Bk 0.8,1.5 2.65
F4B 0.8 3.5
FE=F4BM 1 2.2
Rogers RO4003 0.254 0.508,0.813,1.524 3.38
RO4350 0.254 0.508,0.762,1.524 3.5
RO5880 0.254.0.508.0.762 2.2
RO3003 0.127,0.508,0.762,1.524 3
RO3010 0.635 10.2
RO3206 0.635MM 10.2
R03035 0.508MM 3.5
RO6010 0.635MM, 1,27MM 10.2
